1. Flow
A widget that implements the flow layout algorithm.
1.1 简介
Flow按照解释的那样,是一个实现流式布局算法的控件。流式布局在大前端是很常见的布局方式,但是一般使用Flow很少,因为其过于复杂,很多场景下都会去使用Wrap。
1.2 布局行为
Flow官方介绍是一个对child尺寸以及位置调整非常高效的控件,主要是得益于其FlowDelegate。另外Flow在用转换矩阵(transformation matrices)对child进行位置调整的时候进行了优化。
Flow以及其child的一些约束都会受到FlowDelegate的控制,例如重写FlowDelegate中的geiSize,可以设置Flow的尺寸,重写其getConstraintsForChild方法,可以设置每个child的布局约束条件。
Flow之所以高效,是因为其在定位过后,如果使用FlowDelegate中的paintChildren改变child的尺寸或者位置,只是重绘,并没有实际调整其位置。
1.3 继承关系
1.4 示例代码
样例其实并不复杂,FlowDelegate需要自己实现child的绘制,其实大多数时候就是位置的摆放。上面例子中,对每个child按照给定的margin值,进行排列,如果超出一行,则在下一行进行布局。
[图片上传失败...(image-ee5330-1556259965583)]
另外,对这个例子多做一个说明,对于上述child宽度的变化,这个例子是没问题的,如果每个child的高度不同,则需要对代码进行调整,具体的调整是换行的时候,需要根据上一行的最大高度来确定下一行的起始y坐标。
1.5 源码解析
构造函数如下:
1.5.1 属性解析
delegate:影响Flow具体布局的FlowDelegate。
其中FlowDelegate包含如下几个方法:
getConstraintsForChild: 设置每个child的布局约束条件,会覆盖已有的;
getSize:设置Flow的尺寸;
paintChildren:child的绘制控制代码,可以调整尺寸位置,写起来比较的繁琐;
shouldRepaint:是否需要重绘;
shouldRelayout:是否需要重新布局。
其中,我们平时使用的时候,一般会使用到paintChildren以及shouldRepaint两个方法。
1.5.2 源码
我们先来看一下Flow的布局代码
可以看到Flow尺寸的取值,直接来自于delegate的getSize方法。对于每一个child,则是将delegate中的getConstraintsForChild设置的约束条件,设置在child上。
Flow布局上的表现,受Delegate中getSize以及getConstraintsForChild两个方法的影响。第一个方法设置其尺寸,第二个方法设置其children的布局约束条件。
接下来我们来看一下其绘制方法。
它的绘制方法非常的简单,先将上次设置的参数都初始化,然后调用delegate中的paintChildren进行绘制。在paintChildren中会调用paintChild方法去绘制每个child,我们接下来看下其代码。
paitChild函数首先会将transform值设在child上,然后根据opacity值,决定其绘制的表现。
当opacity为0时,只是设置了transform值,这样做是为了让其响应区域跟随调整,虽然不显示出来;
当opacity为1的时候,只是进行Transform操作;
当opacity大于0小于1时,先调整其透明度,再进行Transform操作。
至于其为什么高效,主要是因为它的布局函数不牵涉到child的布局,而在绘制的时候,则根据delegate中的策略,进行有效的绘制。
1.6 使用场景
Flow在一些定制化的流式布局中,有可用场景,但是一般写起来比较复杂,但胜在灵活性以及其高效。
2. Table
A widget that uses the table layout algorithm for its children.
2.1 简介
每一种移动端布局中都会有一种table布局,这种控件太常见了。至于其表现形式,完全可以借鉴其他移动端的,通俗点讲,就是表格。
2.2 布局行为
表格的每一行的高度,由其内容决定,每一列的宽度,则由columnWidths属性单独控制。
2.3 继承关系
2.4 示例代码
一个三行四列的表格,第一三行宽度为50,第二四行宽度为100。
Table样例
2.5 源码解析
构造函数如下:
2.5.1 属性解析
columnWidths:设置每一列的宽度。
defaultColumnWidth:默认的每一列宽度值,默认情况下均分。
textDirection:文字方向,一般无需考虑。
border:表格边框。
defaultVerticalAlignment:每一个cell的垂直方向的alignment。
总共包含5种:
top:被放置在的顶部;
middle:垂直居中;
bottom:放置在底部;
baseline:文本baseline对齐;
fill:充满整个cell。
textBaseline:defaultVerticalAlignment为baseline的时候,会用到这个属性。
2.5.2 源码
我们直接来看其布局源码:
第一步,当行或者列为0的时候,将自身尺寸设为0x0。
第二步,根据textDirection值,设置方向,一般在阿拉伯语系中,一些文本都是从右往左现实的,平时使用时,不需要去考虑这个属性。
第三步,设置每一个cell的尺寸。
第四步,如果有baseline则进行相关设置。
第五步,根据alignment,调整child的位置。
最后一步,则是根据每一行的宽度以及每一列的高度,设置Table的尺寸。
最后梳理一下整个的布局流程:
当行或者列为0的时候,将自身尺寸设为0x0;
根据textDirection进行相关设置;
设置cell的尺寸;
如果设置了baseline,则进行相关设置;
根据alignment设置cell垂直方向的位置;
设置Table的尺寸。
如果经常关注系列文章的读者,可能会发现,布局控件的布局流程基本上跟上述流程是相似的。
2.6 使用场景
在一些需要表格展示的场景中,可以使用Table控件。
3. Wrap
A widget that displays its children in multiple horizontal or vertical runs.
3.1 简介
看简介,其实Wrap实现的效果,Flow可以很轻松,而且可以更加灵活的实现出来。
3.2 布局行为
Flow可以很轻易的实现Wrap的效果,但是Wrap更多的是在使用了Flex中的一些概念,某种意义上说是跟Row、Column更加相似的。
单行的Wrap跟Row表现几乎一致,单列的Wrap则跟Row表现几乎一致。但Row与Column都是单行单列的,Wrap则突破了这个限制,mainAxis上空间不足时,则向crossAxis上去扩展显示。
从效率上讲,Flow肯定会比Wrap高,但是Wrap使用起来会方便一些。
3.3 继承关系
从继承关系上看,Wrap与Flow都是继承自MultiChildRenderObjectWidget,Flow可以实现Wrap的效果,但是两者却是单独实现的,说明两者有很大的不同。
3.4 示例代码
示例代码直接使用的官方文档上的,效果跟Flow的例子中相似。

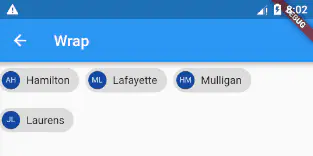

Wrap样例
3.5 源码解析
构造函数如下:
3.5.1 属性解析
direction:主轴(mainAxis)的方向,默认为水平。
alignment:主轴方向上的对齐方式,默认为start。
spacing:主轴方向上的间距。
runAlignment:run的对齐方式。run可以理解为新的行或者列,如果是水平方向布局的话,run可以理解为新的一行。
runSpacing:run的间距。
crossAxisAlignment:交叉轴(crossAxis)方向上的对齐方式。
textDirection:文本方向。
verticalDirection:定义了children摆放顺序,默认是down,见Flex相关属性介绍。
3.5.2 源码
我们来看下其布局代码。
第一步,如果第一个child为null,则将其设置为最小尺寸。
第二步,根据direction、textDirection以及verticalDirection属性,计算出相关的mainAxis、crossAxis是否需要调整方向,以及主轴方向上的限制。
第三步,计算出主轴以及交叉轴的区域大小。
第四步,根据direction设置Wrap的尺寸。
第五步,根据runAlignment计算出每一个run之间的距离,几种属性的差异,之前文章介绍过,在此就不做详细阐述。
第六步,根据alignment计算出每一个run中child的主轴方向上的间距。
最后一步,调整child的位置。
我们大致梳理一下布局的流程。
如果第一个child为null,则将Wrap设置为最小尺寸,布局结束;
根据direction、textDirection以及verticalDirection属性,计算出mainAxis、crossAxis是否需要调整方向;
计算出主轴以及交叉轴的区域大小;
根据direction设置Wrap的尺寸;
根据runAlignment计算出每一个run之间的距离;
根据alignment计算出每一个run中child的主轴方向上的间距
调整每一个child的位置。
3.6 使用场景
对于一些需要按宽度或者高度,让child自动换行布局的场景,可以使用,但是Wrap可以满足的场景,Flow一定可以实现,只不过会复杂很多,但是相对的会灵活以及高效很多。
